VUBA, VubaMac Structural Reinforcement Mesh (SRM) - All Sizes

VUBA, VubaMac Structural Reinforcement Mesh

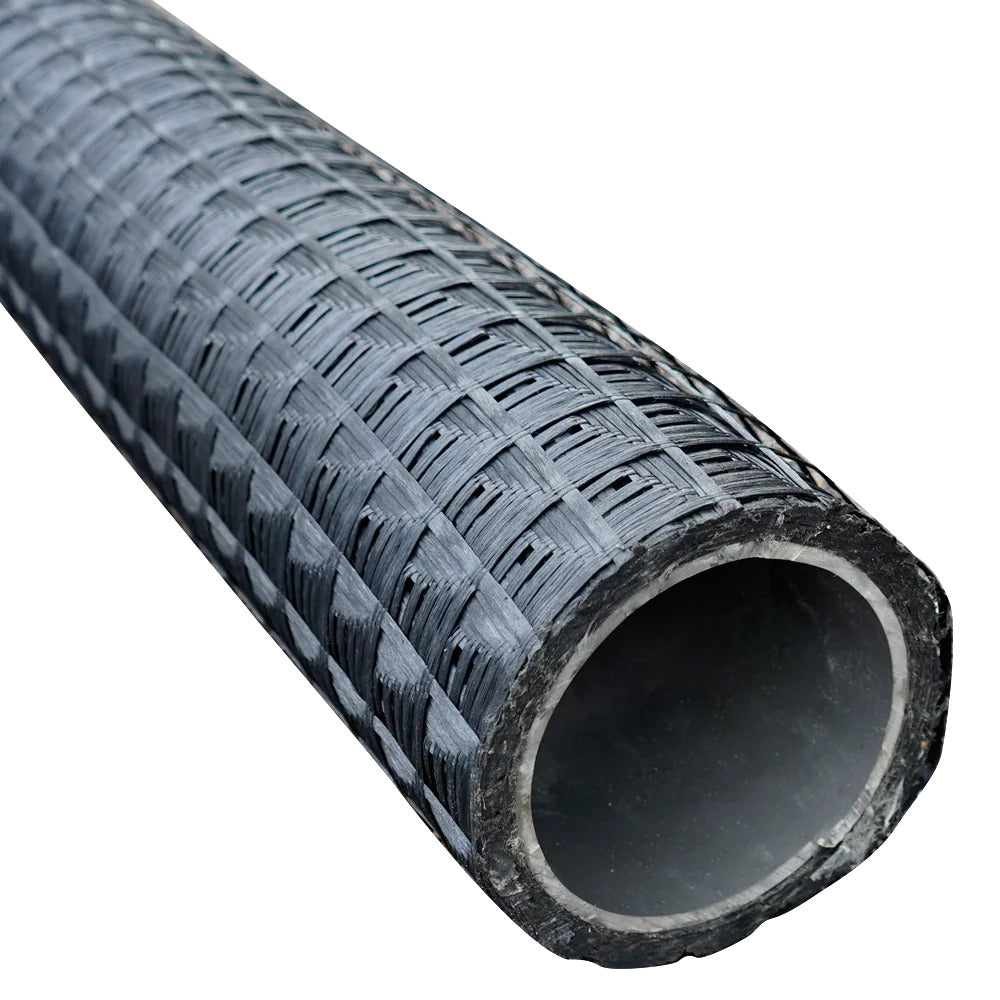

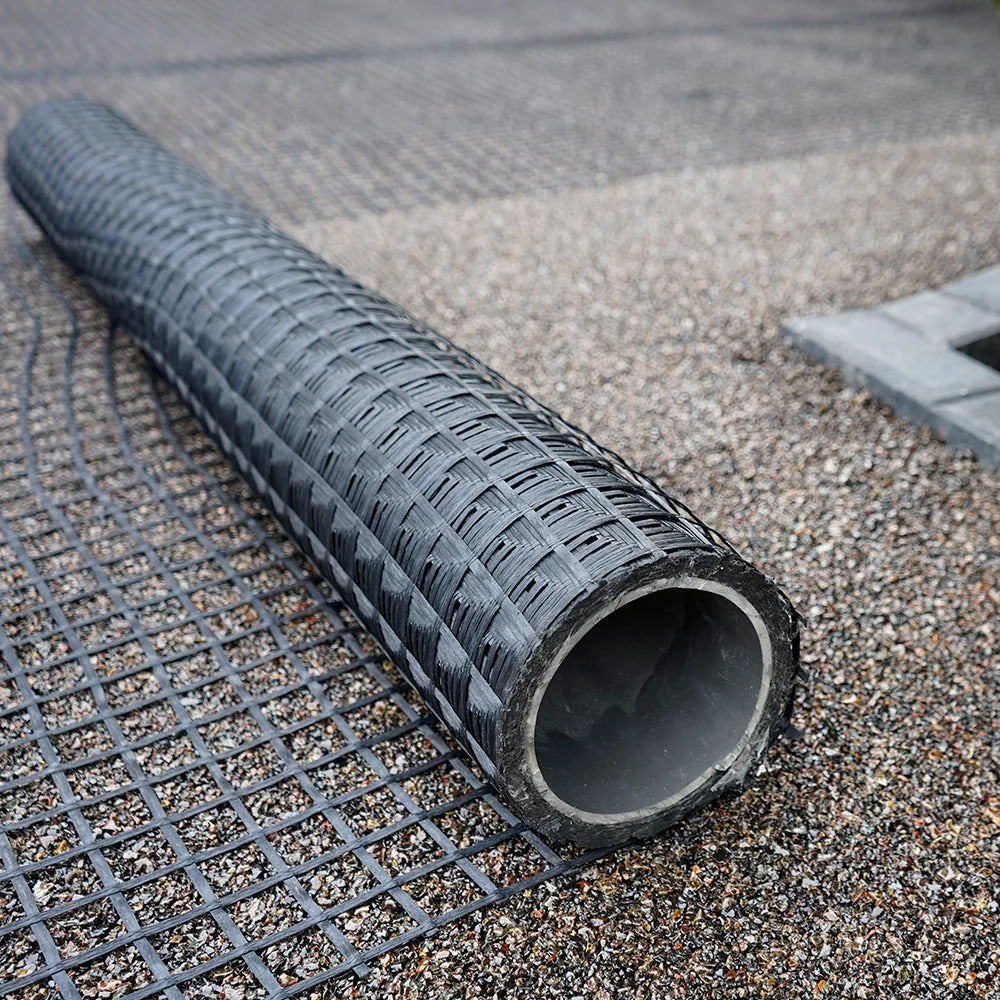

Vuba SRM is a structural reinforcement mesh engineered with advanced technology to strengthen earth structures. It can be incorporated into resin-bound surfaces or applied over existing surfaces like concrete to reduce movement and prevent reflective cracking.

The SRM is a Structural Reinforcement Mesh comprising 2 layers of the VubaMac Urethane Binder Course and adding a high-strength resistance and support structure to the base.

VubaMac SRM Features

• Made from Recyclable Plastic

• High Tenacity Polyester Yarns

• UV Resistant Finished Coating

• 50kN Strength Resistance


How to Buy VubaMac SRM

Sold in a 40sqm and 130sqm Rolls

What is VubaMac?

VubaMac is a flexible, ultra-durable, and eco-friendly base system, purpose-built for resin bound surfacing. Unlike conventional sub-bases, it’s designed to form a monolithic bond with the resin bound top layer—when installed within the recommended intercoat period—creating the first truly integrated resin bound system.

For best results, install the complete VubaMac system (including the resin-bound surface course) at:

36 mm for pedestrian use
50 mm for vehicular use

This guarantees exceptional strength, stability, and seamless performance for both residential and commercial applications.

Built with advanced permeability technology, VubaMac is the world’s most flood-resistant paving solution, combining durability, sustainability, and top-tier performance.

Made from 100% repurposed waste aggregate and renewable binders, it helps combat CO₂ emissions from concrete and VOC emissions from asphalt. Its No-Dig system preserves the existing ground structure, saving millions of kilograms of earth per street and removing the need for conventional drainage.

By bonding seamlessly with the resin-bound surface layer, VubaMac offers unmatched longevity and flexibility—far outlasting traditional materials like asphalt and concrete.

Supplied as a complete system from a single trusted source, VubaMac allows for quick, one-day installations with minimal disruption, delivering a quieter, smoother, and more environmentally responsible paving solution.

Choose VubaMac—for a greener, stronger, and longer-lasting surface.

Coverage:

Step 1: Begin by installing the VubaMac Structural Reinforcement Mesh in your chosen area. This mesh comes in 130 sqm rolls, available from Stone Zone. Before purchasing, calculate the total square meterage you need to ensure full coverage.

Step 2: Lay down a Urethane Binder Course, made up of High Strength Railway Ballast, UV Polyurethane Resin, and Binding Quartz. The depth of this layer depends on the intended use of the surface:

15 mm for pedestrian areas
30 mm for vehicle access
35 mm for commercial applications

Step 3: Once the Binder Course is in place, add a second layer of mesh. This provides extra durability and ensures all materials are securely compacted.

Step 4: Finish with your Resin Bound layer. Stone Zone stocks a wide range of resin colours—perfect for matching any design scheme for your path, driveway, or commercial space.

What is VubaMac Base Aggregate?

VubaMac Base Aggregate is a high-strength Railway Ballast—a specially selected, recycled material engineered for outstanding durability and performance. This tough, hard-wearing aggregate creates a strong structural foundation for your PU Binder Course, delivering reliable strength and stability in every layer of the system.

Sourced entirely from Network Rail’s track renewal projects, the VubaMac system uses 100% recycled Railway Ballast. Each batch is meticulously screened for quality and consistency, ensuring it meets the highest standards for use in the Urethane Binder Course of the VubaMac system.
